Open wire line

(this page under construction)

I have 1000 feet of open wire line.  It is made from 4 AWG stranded aluminum XHHW wire spaced on 5 inch centers.  It is supported every 50 feet by 5 foot poles and there are 3 insulators between each support.  Zo = 450 ohms +/- 5%.  The loss is .3 dB on 160 meters including the transformers at each end.

Here are some general photos:

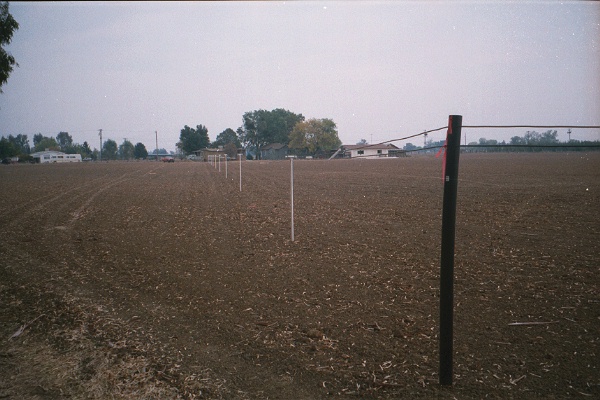

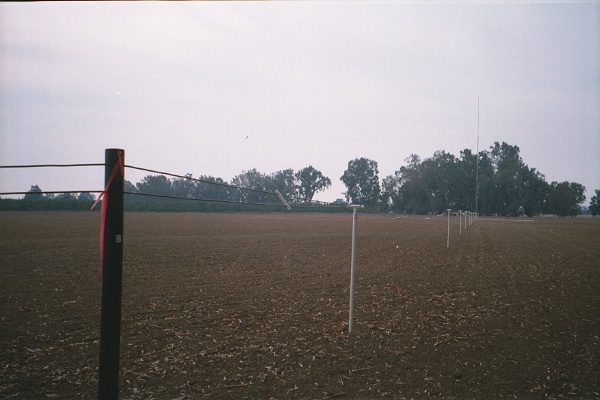

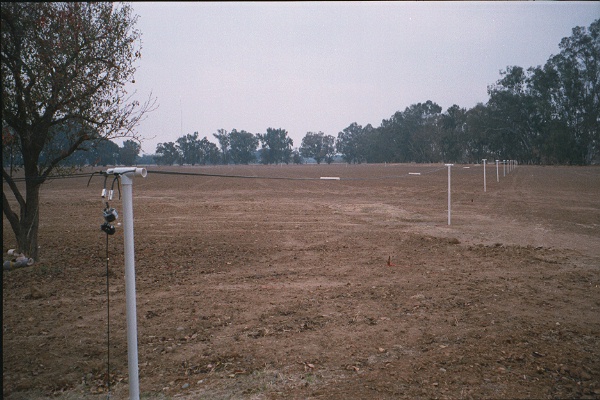

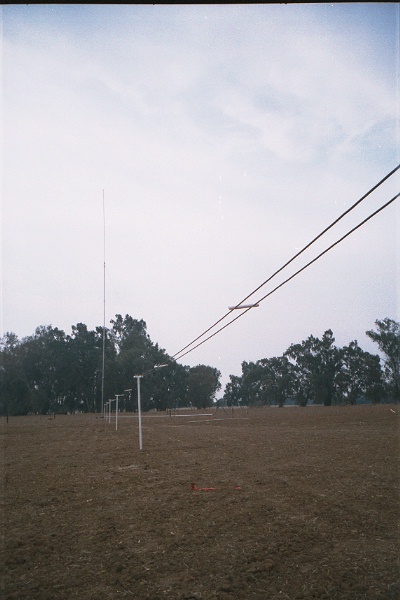

[looking toward antenna] [looking up toward antenna] [looking toward shack] [looking away from_shack]

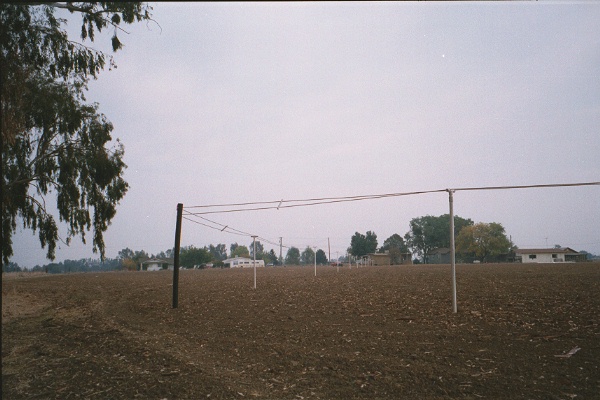

This [photo] shows the corner where the wires twist and make a 120 degree bend.

Finally, some photos showing our "studio audience" in the background:

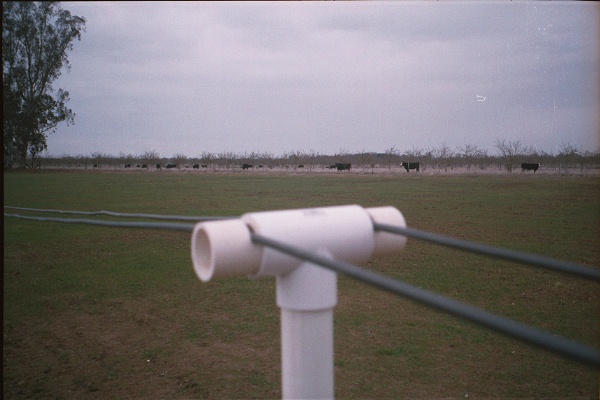

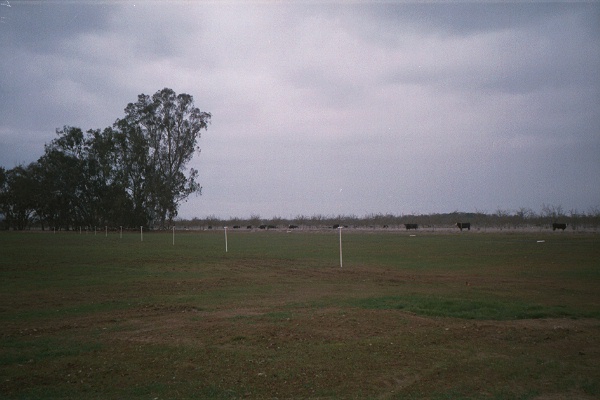

[closeup of support insulator] [looking across line toward pasture]
